1995 S-10 Drag Truck

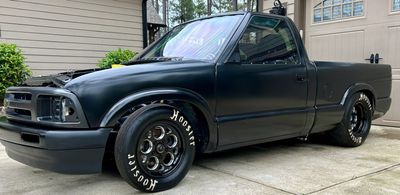

The 1995 S10 drag truck came to us in poor condition, this truck underwent a complete electrical and performance upgrade for race readiness. The entire vehicle was rewired using a Pro 8 Leash relay board, integrating an MSD ignition as well as wiring a Induction Solutions nitrous system. We built a  8.8 Ford rear end with a spool, 4.88 gears, and disc brakes were installed installed, along with a full Caltrac suspension system, including rear springs, traction bars, and adjustable shocks. The braking system was enhanced with a Wilwood master cylinder, new brake lines, and a line lock. Additional upgrades included a new exhaust routed past the driver’s compartment and a Lokar transmission dipstick. Finally, the vehicle was tuned and prepped for the track.

Suspension & Brakes

Suspension & Brakes

Suspension & Brakes

  • Build and install 8.8 Ford rearend with spool, 4.88 gears & disc brakes
  • Caltrac Rear Springs
  • Caltrac Traction bar system
  • Caltrac Rear Adjustable shocks
  • Wilwood Master Cylinder
  • Line Lock
  • New Brake Lines

Drivetrain

Suspension & Brakes

Suspension & Brakes

  • Wire MSD ignition
  • Wire Nitrous System
  • Exhaust to exit under vehicle past drivers compartment
  • Lokar Transmission dipstick

Features

Suspension & Brakes

Features

  • Rewire complete vehicle with Pro 8 Leash relay board
  • Tune vehicle ready to hit the track
