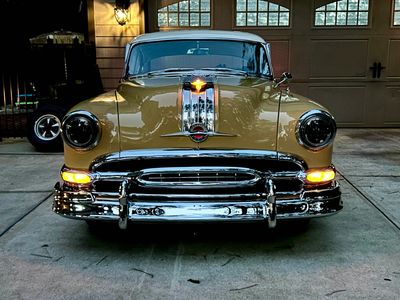

1954 Pontiac Star Chief

The 1954 Pontiac Star Chief is undergoing a major restoration and modernization, including a complete front-end transformation with a Scotts suspension frame section, tubular control arms, coil over shocks, power rack & pinion steering, front disc brakes, and sway bar. A new 340hp 350ci Chevrolet small block was installed, paired with a rebuilt Turbo 350 transmission featuring a 2800 stall converter. The fuel and ignition systems were upgraded with a Holley Sniper EFI and ignition, along with an American Autowire harness for a full vehicle rewire. Additional enhancements included a Wilwood master cylinder, new brake lines, Vintage Air conditioning, a tilt steering wheel, and a custom firewall. The cooling system received an aluminum radiator and custom-fabricated core support, while the exhaust was upgraded to a new 2.5” system. The vehicle also received aesthetic refinements such as polished stainless trim, a cleaned and polished dash, floor sound deadening, and a buffed and waxed exterior.

Suspension & Brakes

Suspension & Brakes

Suspension & Brakes

  • Cut front frame section off and install Scotts Suspension front frame section
  • Power Rack & Pinion Steering
  • Front Disc Brakes
  •  Scotts Tubular front suspension
  • Scotts front sway bar
  • Wilwood Master Cylinder with remote reservoirs
  • New brake lines complete vehicle

Drivetrain

Suspension & Brakes

Suspension & Brakes

  • New 340hp / 350ci small block Chevrolet
  • Rebuild turbo 350 transmission with a 2800 stall converter
  • Paint engine and transmission
  • Holley Snyper Fuel Injection System
  • Holley Snyper Ignition system
  • MSD plug wires
  • New 2 1/2' exhaust system

Features

Suspension & Brakes

Features

  • Rewire complete vehicle with an American Autowire harness
  • Fabricate front bumper spacers
  • Vintage Air conditioning
  • Tilt steering wheel
  • New Gas Tank, fuel lines and filters
  • Custom Built and painted firewall
  • Clean and Paint exhaust manifolds
  • Paint front frame section and suspension
  • Custom Fabricated radiator core support
  • Aluminum Radiator
  • Clean Interior and polish dash
  • Floor sound deadener
  • Polish all stainless on vehicle
  • Buff and wax vehicle
